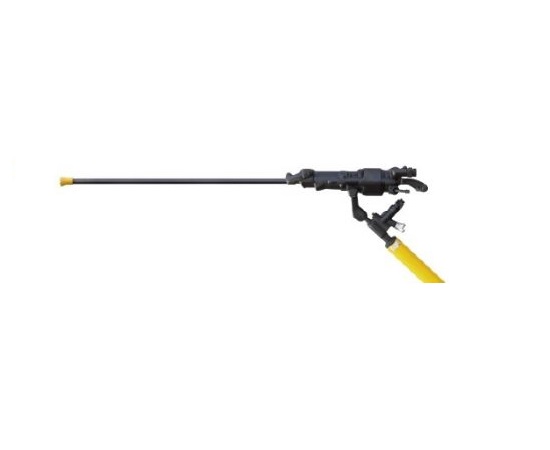

ATLAS COPCO Pneumatic Rock Drill BBD94WS UNDERGROUND APPROVED

$POA (please contact us for pricing)

Atlas Copco water flushed, pusher leg mounted rock drills are designed for driving drifts and tunnels with a small cross section. These well-proven rock drills are recognized for their high performance and reliability. They are intended for use for hole diameter range of 27 to 41 mm (1-1 5/8 in)with Hex 22 (7/8″) rotation shank as a standard. When used with Atlas Copco tapered button bits, penetration rate will improve some 25-50% compared to conventional integral steels and have three to five times longer service life. With its short stroke and high impact rate, the BBD 94 is ideal for working softer rock. This drill is comparatively short and provides an outstanding power-to-weight ratio thanks to its ratchetwheel rotation percussion mechanism.

SKU: BBD94WS Categories: , ,

Description

Part # 8311 0206 12

Rock drill type
Underground rock drill

Rock drill version
Pusher leg rock drill

Weight
31 kg

Length
670 mm

Air consumption
97 l/s

Impact Rate
3300 blows/min

Piston diameter
90 mm

Stroke length
45 mm

Largest reaming diameter
76 mm

Hole diameter
27 – 41 mm

Vibration level 3 axes (ISO 5349-2)*
15 m/s²

Sound power level guaranteed, Lw (ISO 15744)*
125 dB(A)

Sound pressure level (ISO 15744)* Lp, r=1m
114 dB(A)

Shank Size (mm)
22×108

Shank Size (inch)
7/8×4 1/4

Suitable pusher leg

Pusher leg rock drill
BMK 91RS (ATEX approved

Additional information

Dimensions 70 × 45 × 50 cm
